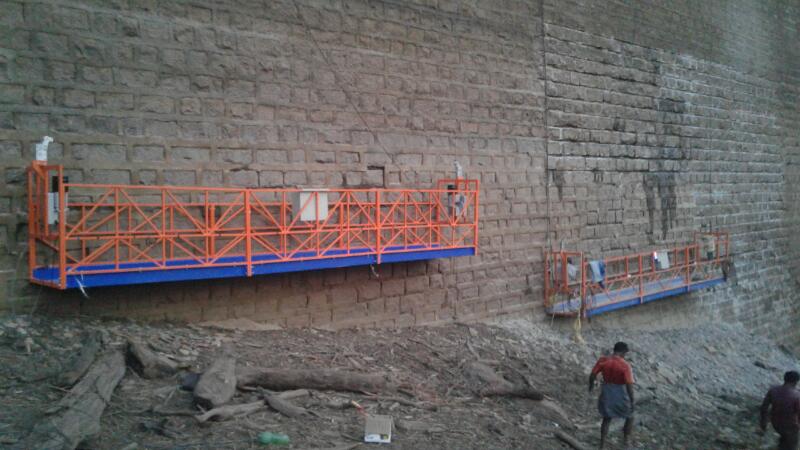

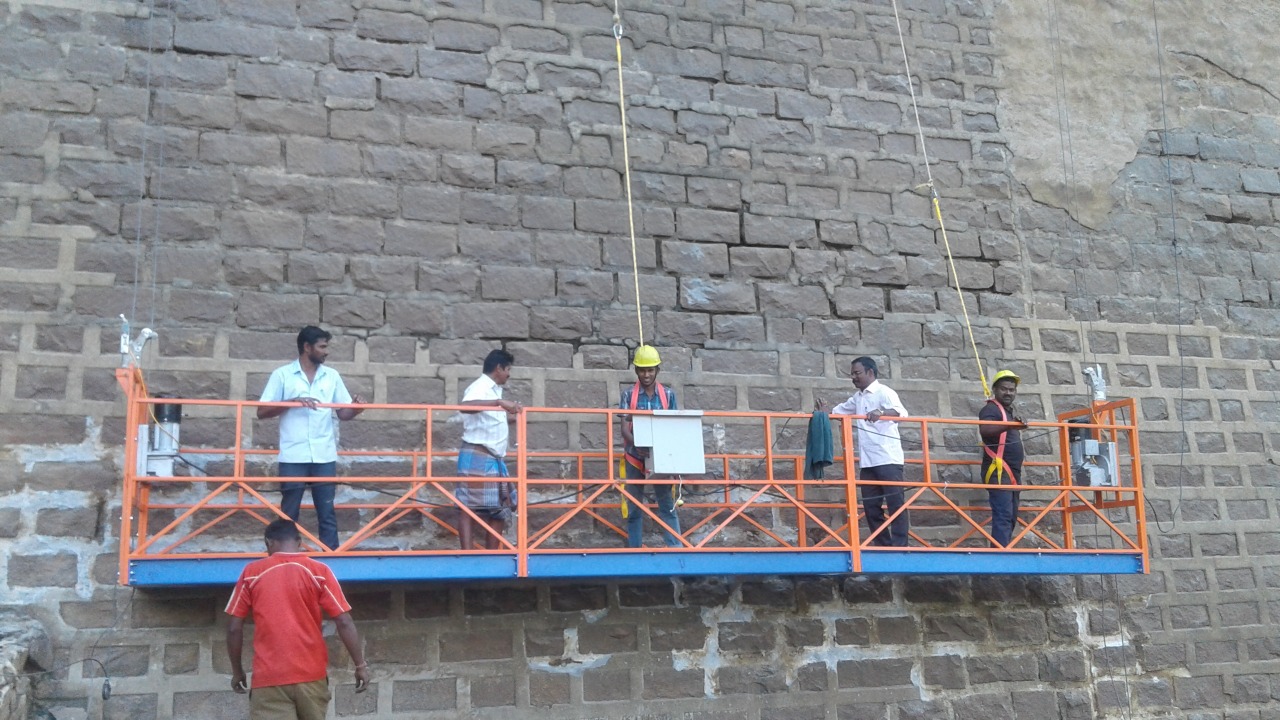

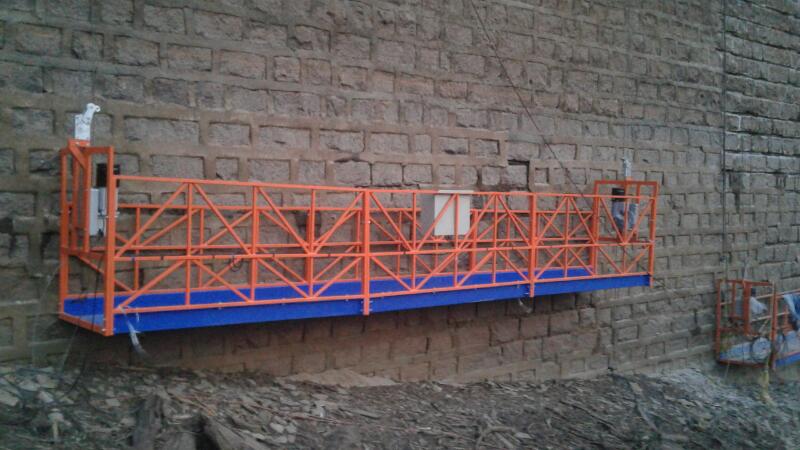

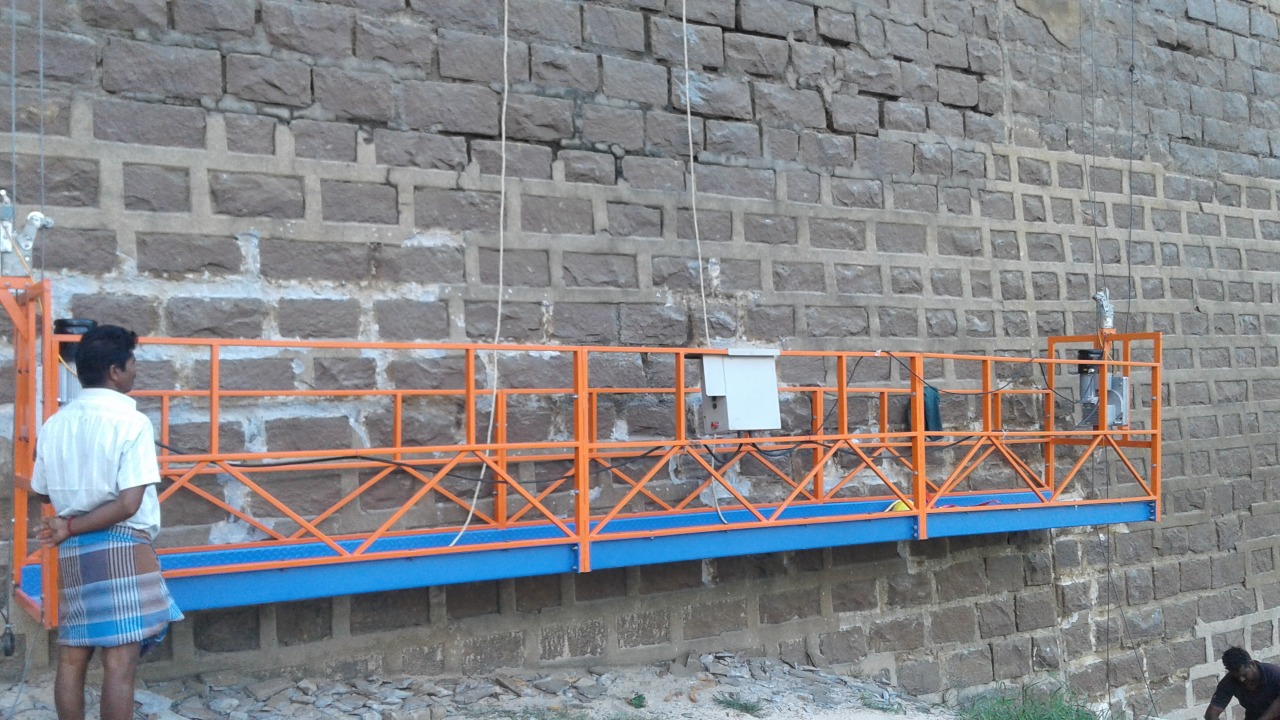

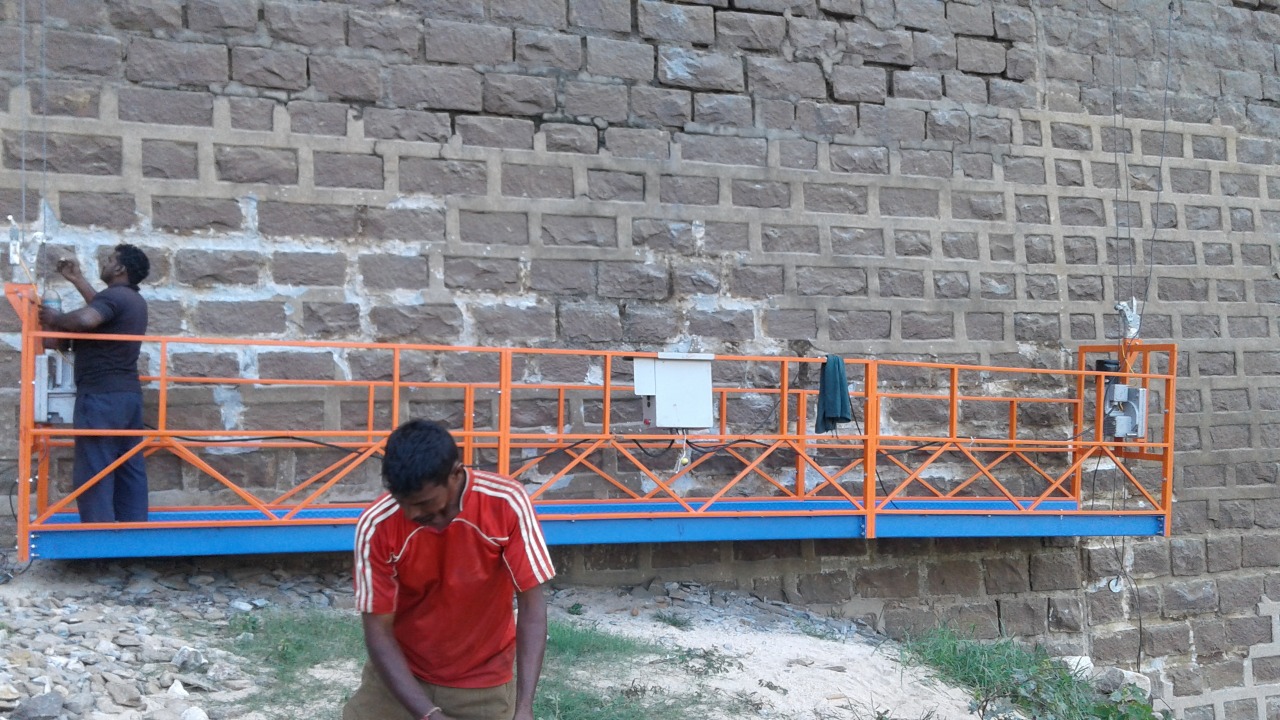

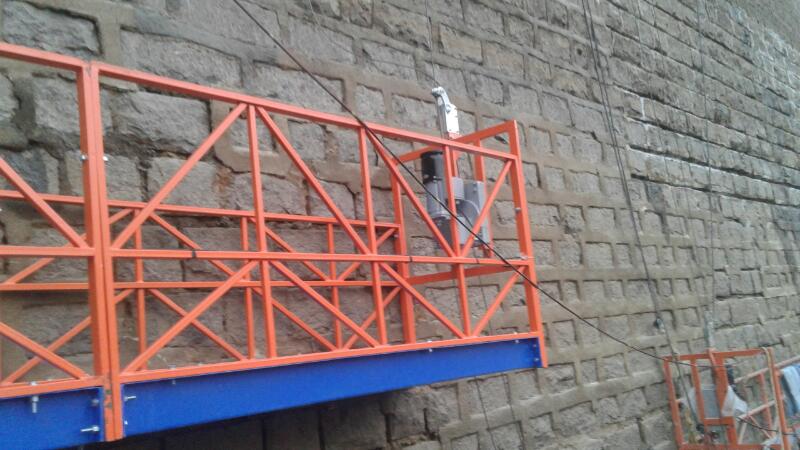

Suspended Platform Machine
We SMW manufacturing high quality of Suspended Platform Machine which esteemed for its compact design, solid construction, dimensional accuracy and reliability. We offer highly functional proficiency Suspended Platform which steady performance for a longer time period.
We are able to provide a exceptional quality assortment of Suspended Platform Machine. The available vibrator is used for compacting concrete of stiff consistency are being designed. Our qualified technocrats only use advanced quality components and launched technology, while manufacturing the provided vibrator. This vibrator is highly desired in the market by our patrons owing to its sturdiness and easy utilization.
Our provided suspended platforms are highly recognized for their industry approved design and other related fantastic features. These suspended platforms are available in customized forms, in order to meet the requirement of our respected customers. Moreover to this, our entire range of suspended platforms is supplied in a specified time frame.
This equipment is User-friendly and convenient and one can carry it anywhere. In the area of construction, there is always require of moving from one place to another and from that moving point of view this is excellent equipment for using. This is not weighty and one can easily carry it.
- Reliable & Efficient
- High Quality
- Accurate Dimension
- Less Maintenance
- Smooth Finish
- Low Power Consumption
Our organization is providing Suspended Platform that is manufactured under the professional experts guidance of our qualified industry experts and thus, appreciated for their sturdy and strong construction. So we are one of the most wellknown Suspended Platform manufacturers in India.
Product Features
- Reliable & Efficient
- High Quality
- Accurate Dimension
- Product Accuracy
- Modern Technology
- Less Maintenance
- Trouble-Free Working
- High Functional Fluency
- Long Raising Height
- Flexible
- Prepared with Advanced Safety Lock
- Product Accuracy
Product Specifications
Model Type | Specifications |
---|---|
Rated Rope | 800 KG |
Lifting Speed | 9m/min |
Max Lifting Height | 100 Meter |
Dimension of Platform | [2.4*3] * 0.7 * 1.2m |
Suspension Mechanism - Front Beam Overhang | 1.3m |
Suspension Mechanism - Adjustable Height | 1.15m |

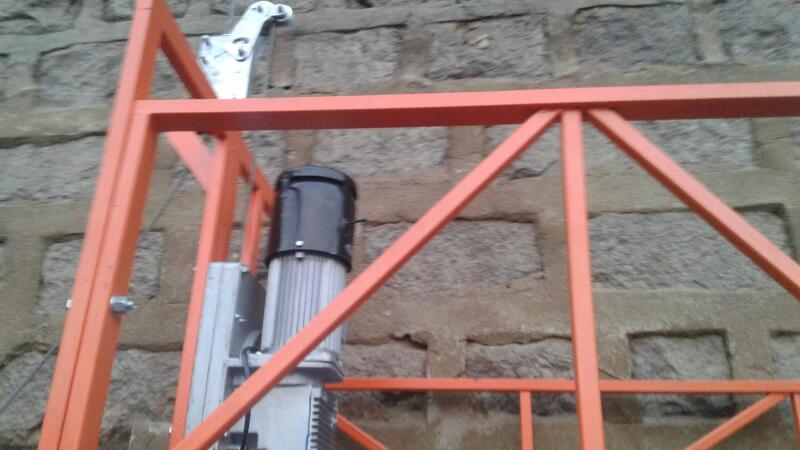

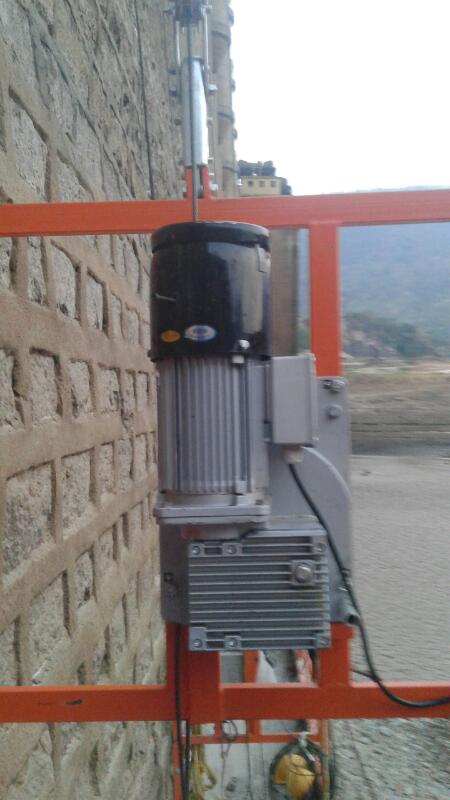

Hoist Model | LTD 8.0 |
Hoist Lifting Force | 8 KN |
Hoist Motor Power | 1.8 KW |
Hoist Motor Voltage | 415 V, 50 HZ, 3 Phase |
Hoist Motor Rotation Speed | 1400 R/Min. |
Hoist Motor Brake Torque | 15.2 Nm |
Safety Lock Type | Tilt proof safety lock |
Safety Lock - Locking cable angle | 3-8 Degree |
Safety Lock - Allowable impulsive force | 30 KN |
Wire Rope Type | 8 mm Filer Coach |
Platform Type | CHECKED/Powder Coated |
